Description

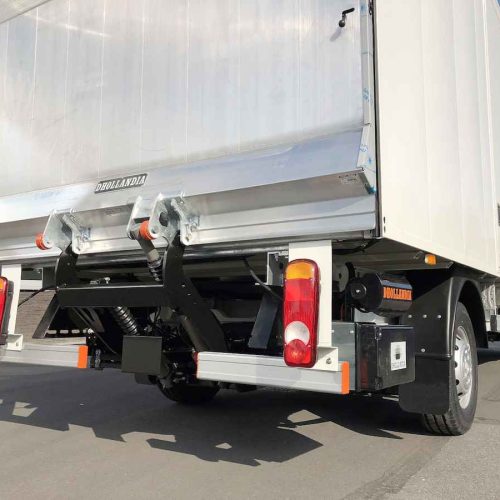

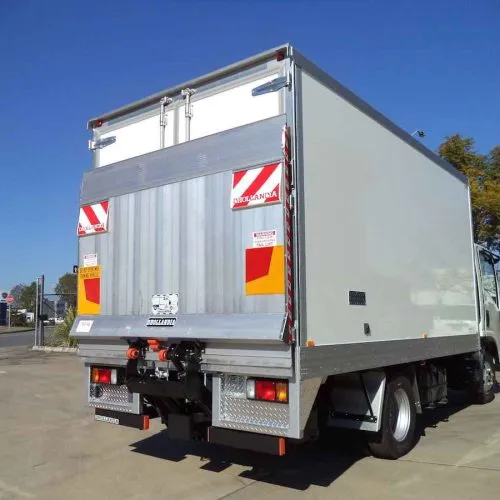

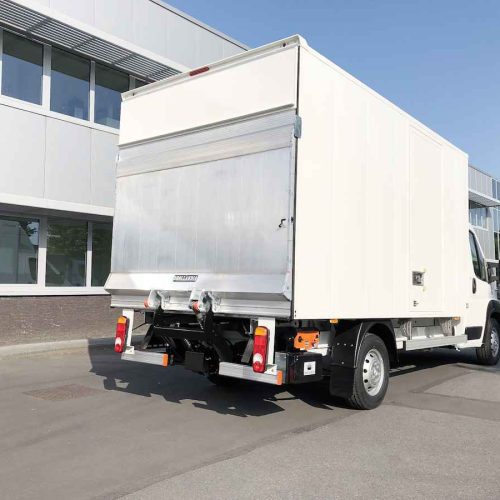

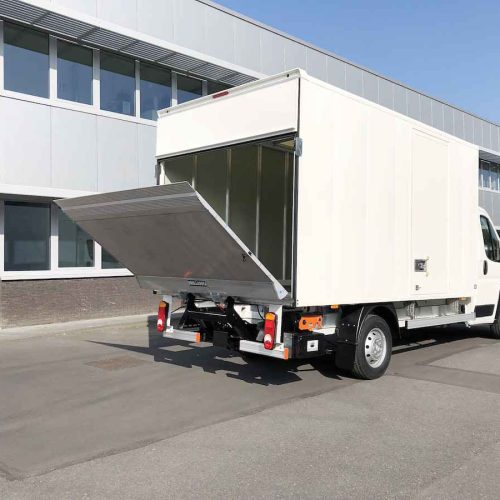

Compact 2-Cylinder Cantilever Lift for Rental Vehicles and Light-Duty Vans – Low Maintenance, Affordable
The┬а2-cylinder DH-LC is at the entry level of our range of cantilever lifts. Thanks to its intrinsic simplicity, its low maintenance cost, and its attractive pricing, this compact lift is ideal to equip rental vehicles┬аand┬аlight-duty commercial vehicles.
The GE-LC is available with universal bolt-on mounting plates to suit regular truck chassis, or with brand-specific quick-fit mounting plates (depending on chassis type, wheelbase, and overhang). It suits most commercial vans and light-duty trucks up to 7.5 T GVW, as well as small trailers and semi-trailers.
The DH-LC.08 is the ideal and most stable tail lift for┬аmounting situations with narrow lift arms, situated between the chassis rails. For most types of vehicles, the other 2-cylinder tail lift DH-LE.08 is usually equipped with wide lift arms, mounted on the outside of the chassis rails.
- Price champion in the light-duty van segment: compact 2-cylinder cantilever lift with an unbeatable total cost of ownership
- Excellent price-quality ratio and total cost of ownership (TCO).
- Wedged platform. Level ride with an automatic tilt at ground level. Adjustable platform orientation.
- Execution and mounting plate adapted to the vehicle brand and type of chassis, to guarantee the fastest possible fitting times and best possible weight reduction.
Characteristics:
- Light-weight aluminium platform with anti-slip surface
- Aluminium platform with profiles oriented in a longitudinal direction [type V…], and a cross-milled anti-slip protection pattern
- Synthetic rollers for the contact between the platform and the ground
- Conical / wedge platform. Level ride with an automatic tilt at ground level
- Platform tilt adjustable at any position from the exterior controls
- Executions:
*GE-LC.08.01: flexible; wide application range; 3-piece bumper affixed to the lift frame
* GE-LC.08.02: dedicated for specific chassis types; maximum weight savings; round bumper mounted on lift arm
* GE-LC.08.03: best compromise: flexible; wide application range; medium weight saving; round bumper mounted on lift arm
- 1 lift cylinder and 1 tilt cylinder with spring-assisted platform opening
- Electrical safety valves on all cylinders
- Manual emergency operation on all electro valves
- Cylinder piston rods in hard-chromed stainless steel
- Cylinders equipped with rubber gaiters and lubrication
- Pump unit 12V or 24V DC, accessible on 5 sides for easy maintenance
- Control box with battery disconnect switch, joystick control, and change-over switch integrated into the cover of the pump unit [OAE030.BT.P.0]
- Without battery disconnect switch: dual toggle-switch control box supplied loose [OAE048.0]
- Electrical controls without sensitive electronic components in basic configuration
- Safe exterior controls with compulsory 2-hand operation
- Electric motor with thermal cut-out fuse
- Narrow arm width for mounting between the chassis beams
- Bolt-on mounting plates for quick and easy fitting [OAM010]
- Also available with quick-fit mounting plates adapted to the vehicle brand, the wheelbase and overhang [option OAM014]
- Alu platform or platform sections in natural finish
- Low-maintenance bearings in all articulation points, plus grease nipples
- Treatment: KTL epoxy coating
