Description

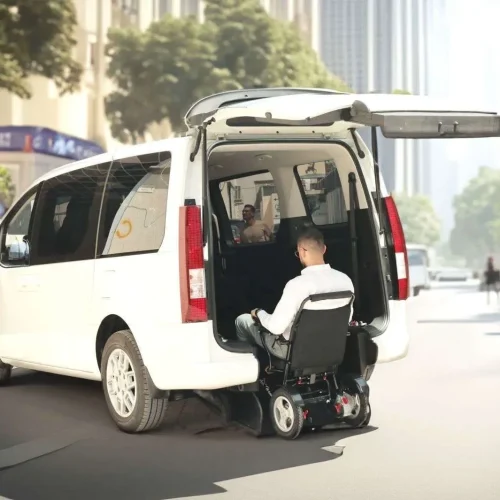

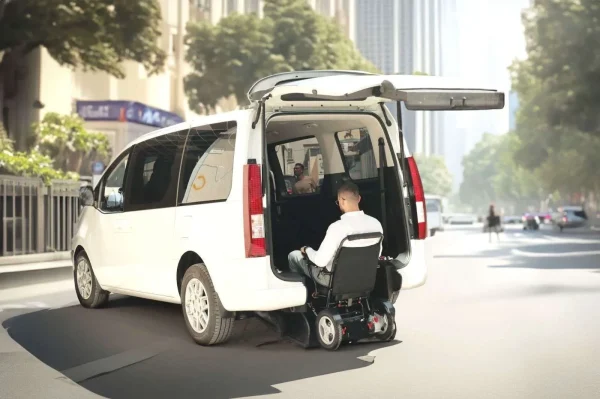

Hyundai Staria G24 NoRamp®
Lowered-Floor Wheelchair Accessible Conversion
The Hyundai Staria G24 NoRamp® is a patented,
Australian-developed lowered-floor wheelchair accessible vehicle
conversion designed to provide wheelchair access without relying
on a traditional long external rear ramp.
Designed for wheelchair users, families, carers, NDIS participants and
disability transport providers, the G24 combines generous internal space,
flexible wheelchair positioning, Australian engineering and long-term
technical support.
Internal Height
System Tested Load
G24 NoRamp® Warranty*
Wheelchair Layout Options
*7-year warranty applies to the G24 NoRamp® system and Gilani Engineering
conversion workmanship, subject to applicable warranty terms and conditions.
Hyundai vehicle warranty is separate.
Developed by Gilani Engineering
Vehicle modification engineering
Quality management systems
Bring the client and their wheelchair
A Lowered-Floor Conversion Without a Traditional Long Rear Ramp
The G24 NoRamp® is an engineered
lowered-floor wheelchair accessible vehicle conversion.
The term NoRamp® refers to the wheelchair access method — not whether
the vehicle has a lowered floor.
At the touch of a button, the access system brings the wheelchair
entrance closer to ground level, allowing the wheelchair user to enter
and exit without deploying a traditional long external rear ramp.
This can be particularly useful in residential driveways, shopping centre
car parks, medical facilities, school loading areas and other places
where space behind the vehicle is limited.
Designed Around Real Everyday Wheelchair Travel
Accessibility is not only about getting into the vehicle. The complete
setup also needs to suit the wheelchair, occupant, family, carers and
everyday travel routine.
No Traditional Long Rear Ramp
Wheelchair access does not depend on deploying or positioning a traditional
long external ramp behind the vehicle.
1600mm Internal Height
Generous internal height for a wide range of manual and powered
wheelchairs, subject to individual suitability assessment.
Flexible Wheelchair Positioning
Second-row, third-row and selected twin-wheelchair configurations can
be considered depending on the required vehicle layout.
Australian Engineering Support
Assessment, engineering, manufacture, installation and ongoing technical
support are available through Gilani Engineering.
Hyundai Staria G24 Dimensions & Load Ratings
Clear dimensions help wheelchair users and Occupational Therapists assess
whether the proposed vehicle configuration is suitable before proceeding.
mm
mm
mm
mm
Published Load Capacity
Safe Working Load
System Tested Load
Final suitability must consider the wheelchair, accessories, seated occupant
height, restraints and selected vehicle configuration.
Choose a Layout Around the Person, Not the Other Way Around
The Hyundai Staria G24 is available in multiple configurations to suit
different wheelchair and passenger requirements.
Passenger Configuration
- 800mm width
- 1400mm length
- 1600mm internal height
Family Configuration
- 800mm width
- 1400mm length
- 1600mm internal height
Twin Wheelchair Configuration
- 800mm width
- Up to 2600mm length
- 1600mm internal height
Family with Side-Folding Seating
- 800mm width
- Up to 2600mm length
- 1600mm internal height
7
YEAR
7-Year G24 NoRamp® Conversion Warranty
Gilani Engineering backs the G24 NoRamp® system and Gilani Engineering
conversion workmanship with a 7-year warranty, subject to the applicable
warranty terms and conditions.
G24 conversions are engineered, manufactured, installed and supported through
Gilani Engineering, giving customers access to a team familiar with the system
throughout its service life.
Australian Technical Support
Servicing Support
Relevant Parts Support
Assess the Actual Vehicle With Your Client
We welcome Occupational Therapists to inspect and trial the Hyundai Staria
G24 with the participant and the wheelchair that will actually be used in
the vehicle.
A physical trial helps assess the real vehicle and wheelchair combination
rather than relying solely on generic measurements.
During a trial we can review:
- Wheelchair width and length
- Seated occupant height
- Internal clearance
- Entry and exit
- 2nd or 3rd row position
- Twin-wheelchair requirements
- Wheelchair restraints
- Occupant restraint positioning
- Passenger seating
- Carer access
- Mobility equipment
- Daily transport requirements
More Than an Access System
A wheelchair accessible vehicle is a significant vehicle modification.
The lowered floor, access system, wheelchair position, restraints and vehicle
configuration need to work together as a complete system.
Tested Load
G24 NoRamp® system tested to a 500kg load.
Safe Working Load
Defined Safe Working Load for the G24 system.
NSW VSCCS
Vehicle modification engineering and certification capability.
Quality Management
Quality management systems supporting our engineering operations.
What Is Modified on a Hyundai Staria G24?
The exact vehicle modifications depend on the Hyundai Staria model,
model year, wheelchair travel position and selected G24 configuration.
For this reason, Gilani Engineering does not make blanket claims that every
original vehicle component is retained or changed across every G24 configuration.
Before proceeding, our engineering team can explain the proposed conversion
for the specific vehicle being assessed and identify the areas affected by
the modification.
Hyundai Staria G24 NoRamp® Specifications
| Vehicle Platform | Selected Hyundai Staria models |
|---|---|
| Conversion Type | G24 NoRamp® lowered-floor wheelchair accessible vehicle conversion |
| Access Method | Integrated NoRamp® access without a traditional long external rear wheelchair ramp |
| Internal Height | 1600mm |
| Wheelchair Tray Width | 800mm |
| Standard Tray Length | 1400mm |
| Selected Extended Layouts | Up to 2600mm published length |
| Published Load Capacity | 350kg |
| Safe Working Load | 380kg |
| System Tested Load | 500kg |
| Wheelchair Positions | 2nd row, 3rd row and selected twin-wheelchair configurations, subject to assessment |
| Wheelchair Types | Manual and powered wheelchairs subject to individual suitability assessment |
| Passenger Seating | Up to 7 seats on selected Passenger layouts and up to 6 seats on selected Family and Twin layouts |
| NSW VSCCS | Licence #170005 |
| Quality Management | ISO 9001 |
| G24 Warranty | 7 years on the G24 NoRamp® system and Gilani Engineering conversion workmanship, subject to terms |
| Manufacture & Installation | Gilani Engineering, Wetherill Park NSW |
G24 NoRamp® vs Conventional Rear-Ramp Lowered-Floor Conversion
Both are lowered-floor wheelchair accessible vehicle conversions.
The major difference is the method used for wheelchair access.
| Feature | G24 NoRamp® | Rear-Ramp Conversion |
|---|---|---|
| Lowered Floor | Yes | Yes |
| Wheelchair Access | Integrated NoRamp® system | Rear ramp |
| Traditional Long External Ramp | Not required | Normally required |
| Space for Ramp Deployment | No long-ramp deployment space required | Required |
| Ramp Handling | No traditional long ramp to unfold or position | Manual or powered depending on system |
NDIS Documentation & Assessment Support
Eligible vehicle modifications may be funded through the NDIS where they
meet the applicable funding criteria and have been approved.
- Detailed vehicle modification quotations
- Conversion specifications
- OT and participant vehicle trials
- Relevant technical information
- Plan-managed and self-managed clients supported
How Much Does a Hyundai Staria G24 Cost?
Pricing depends on the vehicle, selected layout, wheelchair position,
passenger seating, restraint requirements and any additional mobility
equipment.
We recommend completing a suitability assessment before finalising the
vehicle configuration and quotation.
Need a Hyundai Staria Wheelchair Accessible Vehicle?
We can discuss conversion-only options or available wheelchair accessible
Hyundai Staria vehicles.
Hyundai Staria Wheelchair Conversion FAQs
Is the G24 NoRamp® a lowered-floor conversion?
Yes. The Hyundai Staria G24 is an engineered lowered-floor wheelchair
accessible vehicle conversion. NoRamp® refers to the wheelchair access
system rather than whether the vehicle floor is lowered.
Does the Hyundai Staria G24 use a wheelchair ramp?
The G24 NoRamp® does not rely on a traditional long external rear wheelchair
ramp. Gilani Engineering also offers separate conventional rear-ramp
lowered-floor conversions.
What is the internal height?
The Hyundai Staria G24 provides up to 1600mm internal height
in the wheelchair travel area, subject to the selected configuration.
What is the wheelchair tray width?
The published wheelchair tray width is 800mm. Wheelchair
controls, hand rims, supports and accessories should also be considered.
What weight can the G24 support?
The Hyundai Staria G24 has a published load capacity of 350kg,
a 380kg Safe Working Load and the system has been
tested to 500kg.
Can powered wheelchairs use the Hyundai Staria G24?
Many powered wheelchairs can be accommodated, subject to wheelchair
dimensions, loading, occupant requirements and selected configuration.
Can the wheelchair user travel in the second or third row?
Yes. Second-row and third-row configurations can be considered depending
on wheelchair dimensions, passenger requirements and the selected G24 layout.
Can the Hyundai Staria G24 carry two wheelchairs?
Selected Twin configurations can accommodate up to two wheelchair positions,
subject to wheelchair dimensions, restraints and the final seating configuration.
What warranty comes with the G24?
The G24 NoRamp® system and Gilani Engineering conversion workmanship are
backed by a 7-year warranty, subject to applicable warranty
terms and conditions. Hyundai vehicle warranty is separate.
Can my Occupational Therapist inspect the G24?
Yes. Occupational Therapists are encouraged to attend a vehicle trial with
their client and bring the wheelchair that will actually be used wherever possible.
Does the G24 retain all original Hyundai components?
The exact components affected depend on the vehicle, model year and conversion
configuration. Gilani Engineering can explain the proposed modifications for
the specific vehicle rather than making a blanket claim across all variants.
Can the conversion be funded through the NDIS?
Eligible vehicle modifications may be funded where they meet applicable NDIS
funding requirements and have been approved. Gilani Engineering can provide
quotations and relevant technical information to assist with assessment.
How much does a Hyundai Staria wheelchair conversion cost?
Pricing depends on the vehicle, G24 configuration, wheelchair position,
seating requirements, restraints and any additional equipment required.
Contact Gilani Engineering for a detailed quotation.
Trial the Hyundai Staria G24 With Your Wheelchair
Choosing a wheelchair accessible vehicle should be based on the actual
wheelchair, participant, vehicle layout and engineering — not simply a brochure.
Bring your wheelchair. Bring your OT. Ask our team questions and assess the
proposed configuration before you decide.
