Phoenix: Portable, Heavy Duty 200kg weight capacity Powered Wheelchair

Description

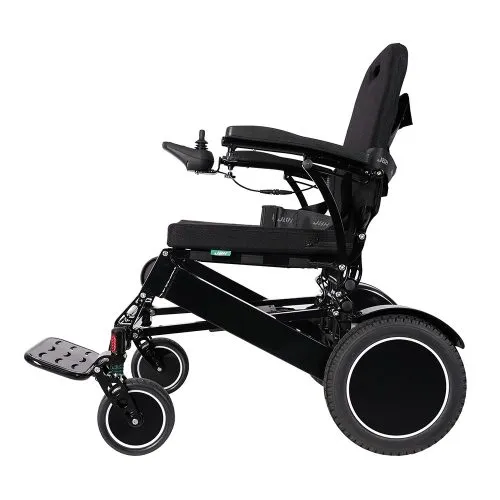

The Model D36-Phoenix power wheelchair is a motorised wheelchair designed for both indoor and outdoor use, specifically intended to aid individuals who are elderly, disabled and unable to stand or walk.

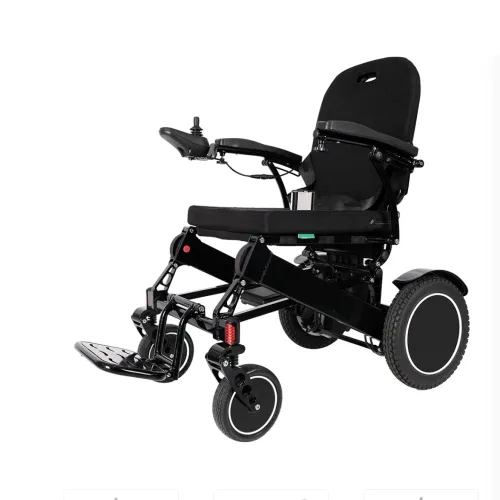

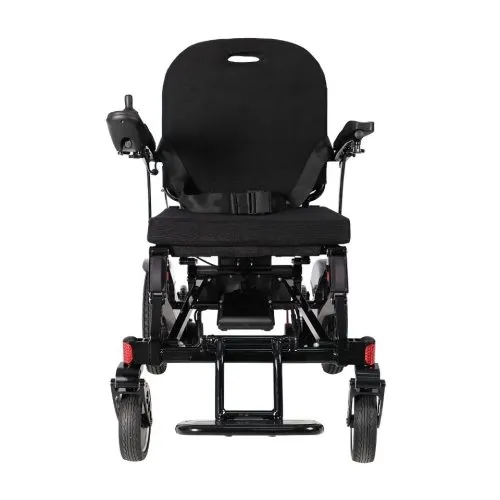

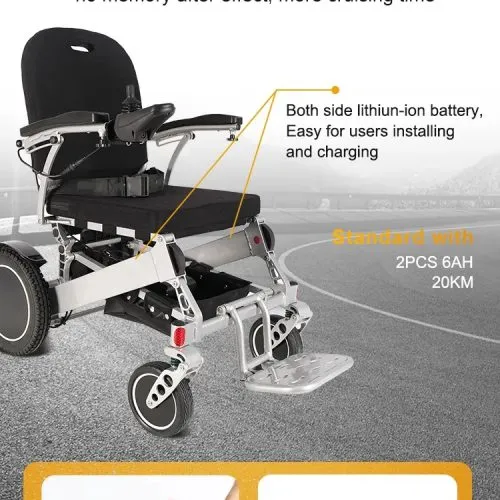

The wheelchair features an aluminium alloy frame for its base, two front wheels and two rear wheels, a seat, an adjustable steering column, a tiller console, an electric motor, and two rechargeable Lithium-Ion batteries with an off-board charger.

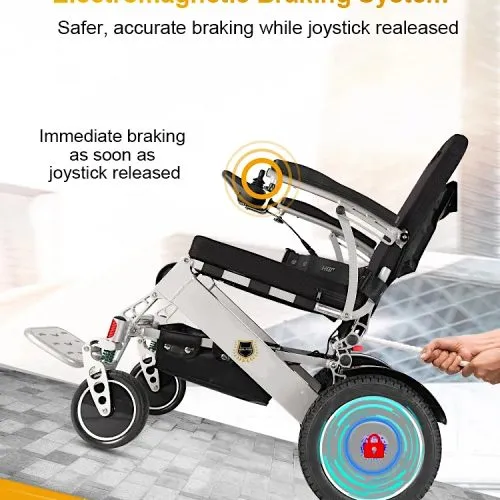

The rider is responsible for controlling the movement of the wheelchair using the throttle lever, speed control dial, and handle located on the tiller console. An electromagnetic brake is also installed on the device, which is automatically engaged when the wheelchair is not in use and cannot be used manually. The wheelchair is restricted to use only on flat surfaces.

Product Features:

• Based on Electric Shock Proof Classification: Classified as an internal power type
  device during operation, it is a type 2 device when it comes to charging.
• Based on the classification of Electric Shock Proof: It belongs to the B type applicable
  section.
• Based on the classification of liquidity proof: IPX 4
• Based on the safety classification of using combustible anesthetic gas mixed
  with air, Oxygen, or flammable anesthetic gas mixed with nitrous oxide: Not
  AP/APG type.
• Classification of running mode: Continuously running mode.

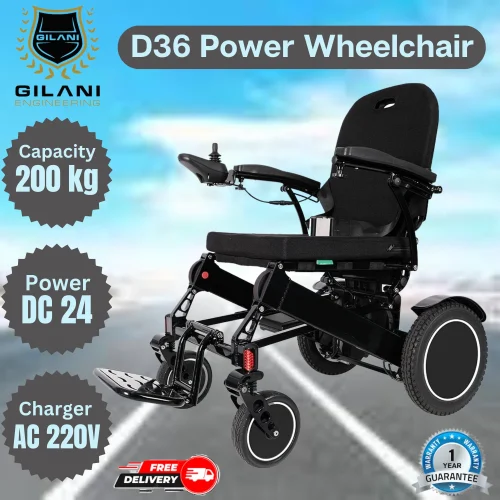

• It is rated Voltage and Frequency: Internal power DC 24, Charger AC 220 V / 50 Hz.
• There is no applicable protection against the defibrillation discharge effect.
• There is no signal input.
• The product does not belong to eternal installation.

Specifications

• Material: Aluminum Alloy
• Loading Capacity: 200 kg

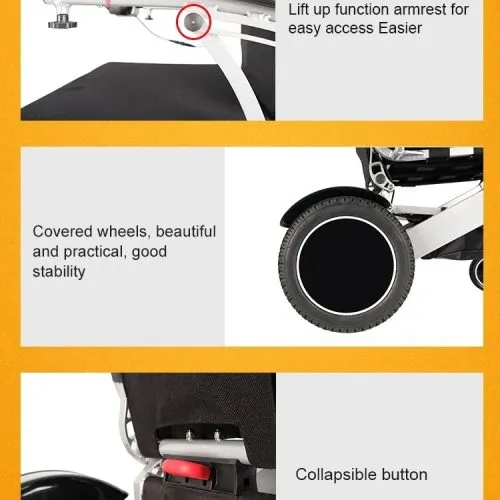

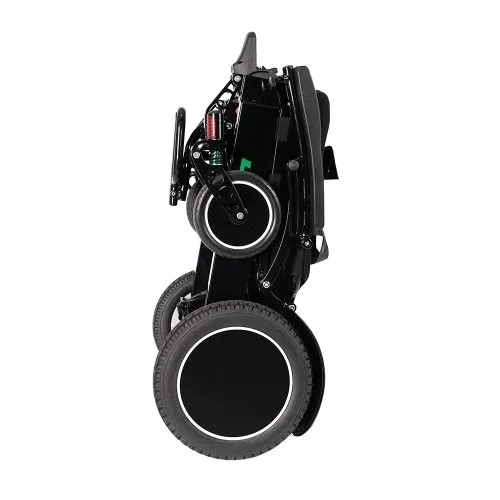

• Foldable
• Armrest
• Controller
• Controller knob
• Seat cushion
• Battery
• Footrest
• Storage Bag
• Seat back/Push handle

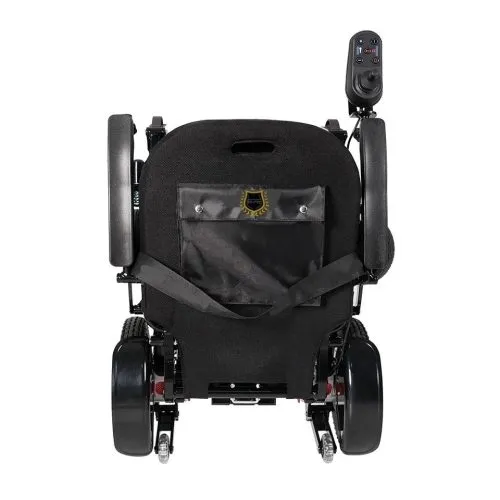

• Backrest cushion with storage bag

Basic Operations

Before operating your D36 Power Wheelchair, be sure to read all safety information and precautions included in the manual. Operate only in the appropriate environment.

GET IN: Be certain that the power is off before sitting in the seat of fold power wheelchair D36, with no light on the controller, make sure the footrest is down before getting into the wheelchair.

POWER ON: Press the power button, and you will hear a beep, and a light will indicate that power is on.

TURING &STEERING: Use the joystick-style control to steer and turn left, right, or go forward and backward.

STOPPING: Remove your hand from the joystick to stop.

POWER OFF: When stopping, it is advised that you power off the wheelchair to prevent accidents. Press the power button to turn off the wheelchair.

GET OUT: Make sure there is no light on the controller before getting off the wheelchair.

⚠️ IMPORTANT SAFETY NOTICE – BATTERY INSTALLATION & STORAGE

Please ensure the battery is inserted correctly into the wheelchair.
DO NOT install the battery upside down or in the wrong orientation, as this can cause serious damage, including risk of fire.

Do not leave the battery inside the wheelchair if you decided to leave the wheelchair in a car
