Name: Lightweight 4-Cylinder Lift Frame for Maximum Stability and Weight Savings - Gilani Engineering
Brand: Gilani Engineering
SKU: GE-10-Frame

Description

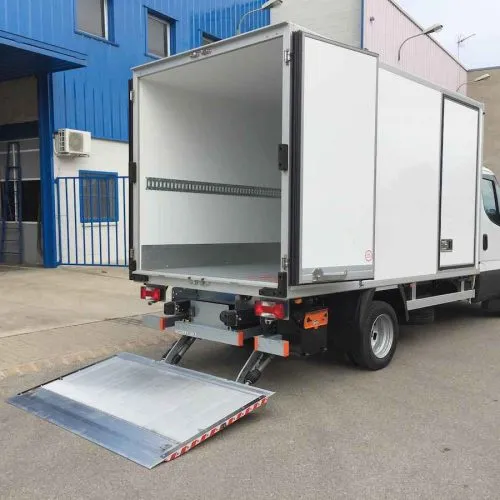

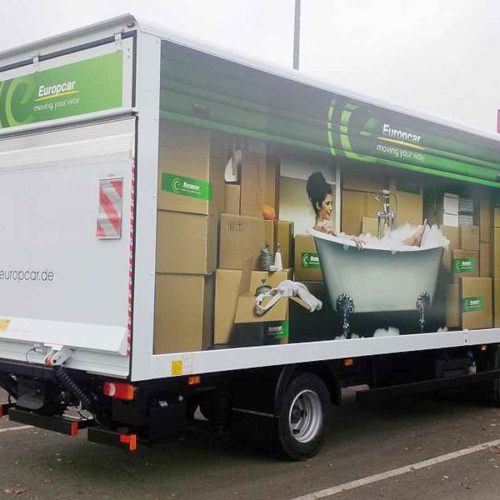

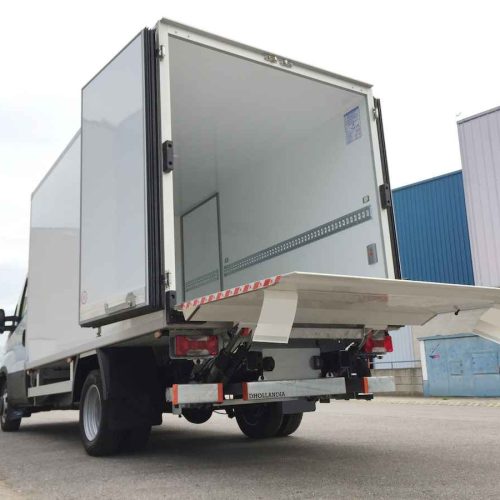

Lightweight 4-Cylinder Lift Frame for Maximum Stability and Weight Savings

The GE-10-Frame is equipped with premounted mounting plates at a fixed center distance. This strong 4-cylinder construction without cross tube allows to save weight and to leave the spare wheel in its original position (in most cases), without compromising on stability. The former model DH-LMQ.07 is now replaced by arm widths 846 – 1006 mm.

2 lift and 2 tilt cylinders for maximum platform stability
Lift frame without a cross tube. Saves weight, and leaves the spare wheel in its original position (in most cases).Wedged platform. Level ride with an automatic tilt at ground level.
Adjustable platform orientation.
Excellent price-quality ratio and total cost of ownership (TCO).
Electrical controls without sensitive electronic components in basic configuration
Lift frame in hot-dip zinc plated (galvanized) finish, or Protection PLUS finish at customer’s choice.

Characteristics:

PLATFORM

Aluminium platform with profiles oriented in a longitudinal direction [type V…], and a cross-milled anti-slip protection pattern
Synthetic rollers for the contact between the platform and the ground

FUNCTIONAL & MECHANICAL CHARACTERISTICS

Frame composed of 2 separate consoles, without structural cross beam
An intelligent design offering a maximum weight saving
Conical / wedge platform. Level ride with an automatic tilt at ground level
Platform tilt adjustable at any position from the exterior controls

HYDRAULIC CHARACTERISTICS

2 lift cylinders for maximum platform stability
2 tilt cylinders with spring-assisted platform opening
Electrical safety valves on all cylinders
Manual emergency operation on all electro valves
Cylinder piston rods in hard-chromed stainless steel
Cylinders equipped with rubber gaiters and lubrication
Pump unit 12V or 24V DC, accessible on 4 sides for easy maintenance

ELECTRICAL CHARACTERISTICS

Control box with battery disconnect switch, joystick control, and change-over switch integrated into the cover of the pump unit [OAE030.BT.P.0]
Without battery disconnect switch: dual toggle-switch control box supplied loose [OAE048.0]
Electrical controls without sensitive electronic components in basic configuration
Safe exterior controls with compulsory 2-hand operation
Electric motor with thermal cut-out fuse

FITTING

Premounted mounting plates at a fixed center distance [OAM011]
Fixed 3-piece bumper bar available as an option [OAF100.ST]

FINISH & MAINTENANCE

Low-maintenance bearings in all articulation points, plus grease nipples
Lift frame in hot-dip zinc plated or “galvanised” finish. Best possible protection against corrosion [OAT104].
Alu platform or platform sections in natural finish
