Description

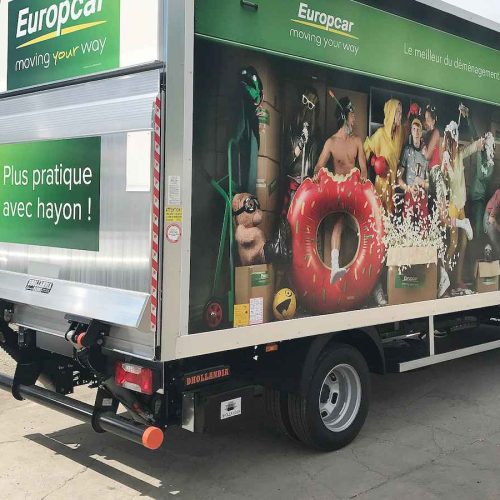

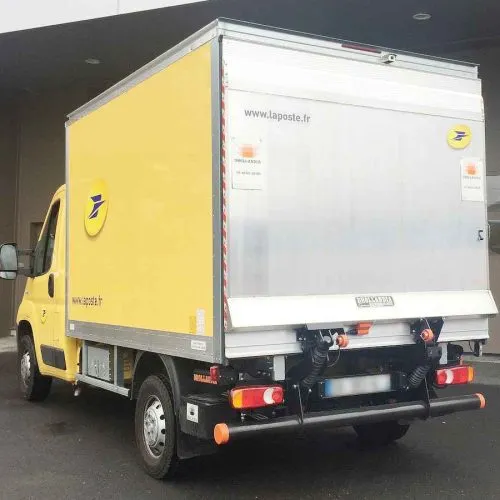

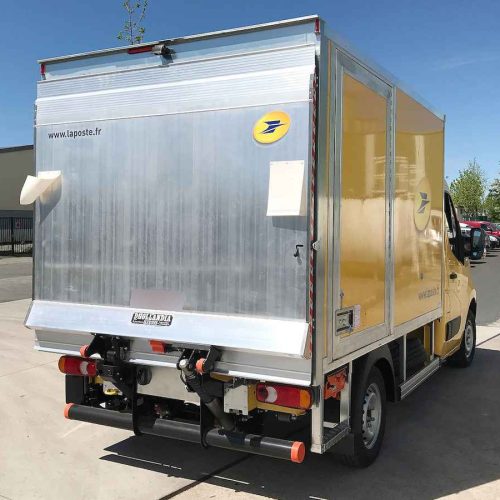

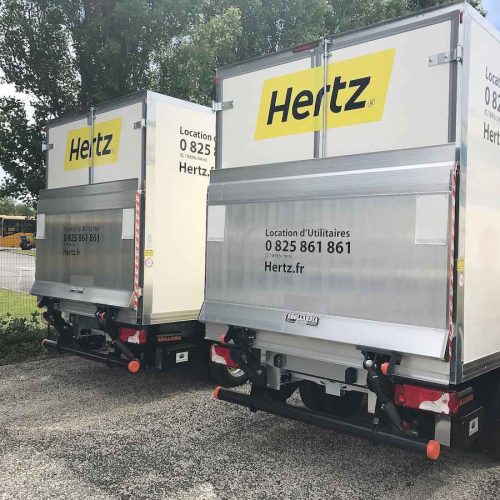

Modern 2-cylinder lift for very short overhang
The new GE-LE is a lightweight 2-cylinder lift. Thanks to its compact lift frame and short lift arms, it ideally suits light commercial vehicles with very short overhangs.
The ingenious lift frame construction without a cross tube allows to save weight and (in most cases) leaves the spare wheel in its original position.
The GE-LE is available with conventional mounting plates to suit regular chassis or with brand-specific quick-fit mounting plates (depending on chassis type, wheelbase, and overhang). The GE-LE.08 cannot be used in combination with a towing hitch (use GE-LMA.08).
- Modern and robust 2-cylinder tail lift with reduced proper weight. A compact lift frame and short lift arms enable installation in very short mounting space.
- Lift frame without a cross tube. Saves weight, and leaves the spare wheel in its original position (in most cases).
- Wedged platform. Level ride with an automatic tilt at ground level. Adjustable platform orientation.
- Excellent price-quality ratio and total cost of ownership (TCO).
- A very versatile lift is available with a large choice of value-adding options and extra equipment.
Characteristics:
PLATFORM
- Light-weight aluminium platform with anti-slip surface
- Aluminium platform with profiles oriented in a longitudinal direction [type V…], and a cross-milled anti-slip protection pattern
- Synthetic rollers for the contact between the platform and the ground
FUNCTIONAL & MECHANICAL CHARACTERISTICS
- Conical / wedge platform. Level ride with an automatic tilt at ground level
- Platform tilt adjustable at any position from the exterior controls
- Frame composed of 2 separate consoles, without structural cross beam
- The bumper works as a torsion tube and effectuates the synchronization between the 2 lift arms
- An intelligent design offering a maximum weight saving
HYDRAULICAL CHARACTERISTICS
- 1 lift cylinder and 1 tilt cylinder with spring-assisted platform opening
- Electrical safety valves on all cylinders
- Manual emergency operation on all electro valves
- Cylinder piston rods in hard-chromed stainless steel
- Cylinders equipped with rubber gaiters and lubrication
- Compact pump unit 12V or 24V DC, mostly premounted on the lift frame
ELECTRICAL CHARACTERISTICS
- Exterior control box with main battery disconnect switch and removable key [OAE030.BT.0] or double toggle-switch control without disconnect switch [OAE048.0]
- Electrical controls without sensitive electronic components in basic configuration
- Safe exterior controls with compulsory 2-hand operation
- Electric motor with thermal cut-out fuse
LIFT FRAME
- Round Rotating bumper bar dia.100 [OAF130]
FITTING
- Compact lift frame and short lift arms for fitting in a short mounting space
- Premounted mounting plates at a fixed center distance [OAM011]
- Also available with quick-fit mounting plates adapted to the vehicle brand, the wheelbase and overhang [option OAM014]
FINISH & MAINTENANCE
- Low-maintenance bearings in all articulation points, plus grease nipples
- Lift frame in Protection PLUS finish (zinc phosphate + KTL epoxy primer + polyester powder top coat)
- Alu platform or platform sections in natural finish
