Description

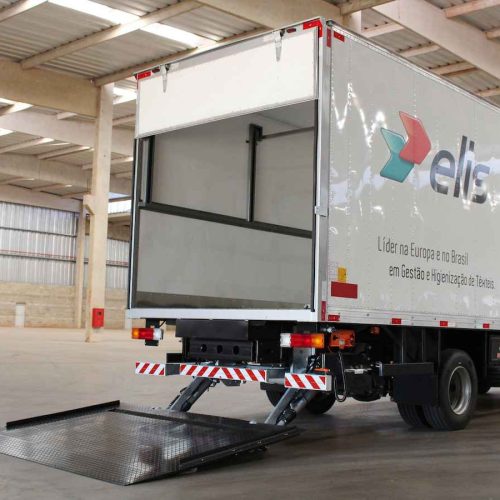

Powerful 4-Cylinder Tail Lift – Light-weight transition model between LM.10 and LM.20
The GE-LM.15 was launched in 2012 as the missing link between the 1000 and 2000 kg capacity lifts. Since then, it has become extremely popular as an ideal weight-saving lift for medium-capacity trucks of 7,5T to 12T GVW.
It is considerably lighter and requires less overhang than the GE-LM.20; yet it is stronger and more robust than the GE-LM.10. It is recommended to use the GE-LM.15 instead of GE-LM.10 / LMQ.10 with 850 mm long lift arms and for 1000 kg lifts with platform depth above 1600 mm.
The mounting plates are bolt-on and fully adjustable in width.
- Powerful, stable 4-cylinder tail lift for 1000-1500 kg lift capacity.
- Reliable weight champion in the 1500 kg class. Offers maximum payload on medium-duty trucks of 7.5-12T GVW.
- Wedged platform. Level ride with an automatic tilt at ground level. Adjustable platform orientation.
- A very versatile lift is available with a large choice of value-adding options and extra equipment.
- Lift frame in hot-dip zinc plated or “galvanized” finish. Best possible protection against corrosion [OAT104].
Characteristics
PLATFORM
- Light-weight aluminium┬аplatform, or┬аheavy-duty steel┬аplatform
- Aluminium platform with profiles oriented in a longitudinal direction [type V…], and a cross-milled anti-slip protection pattern
- Synthetic rollers for the contact between the platform and the ground
FUNCTIONAL & MECHANICAL CHARACTERISTICS
- An intelligent design offering a maximum weight saving
- Conical / wedge platform. Level ride with an automatic tilt at ground level
- Platform tilt adjustable at any position from the exterior controls
HYDRAULIC CHARACTERISTICS
- 2 lift cylinders for maximum platform stability
- 2 tilt cylinders with spring-assisted platform opening
- Electrical safety valves on all cylinders
- Manual emergency operation on all electro valves
- Cylinder piston rods in hard-chromed stainless steel
- Cylinders equipped with rubber gaiters and lubrication
- Pump unit 12V or 24V DC, accessible on 5 sides for easy maintenance
ELECTRICAL CHARACTERISTICS
- Control box with battery disconnect switch, joystick control, and change-over switch [OAE030.BT.0]
- Electrical controls without sensitive electronic components in basic configuration
- Safe exterior controls with compulsory 2-hand operation
- Electric motor with thermal cut-out fuse
FITTING
- Bolt-on mounting plates for quick and easy fitting [OAM010]
- Fixed 3-piece bumper bar available as an option [OAF100.ST]
FINISH & MAINTENANCE
- Low-maintenance bearings in all articulation points, plus grease nipples
- Lift frame in hot-dip zinc plated or “galvanized” finish. Best possible protection against corrosion [OAT104].
- Alu platform or platform sections in natural finish
- Steel platforms to 2000 mm shotblasted and KTL epoxy primed, or in zinc primer at the discretion of Gilani Engineering. Steel platforms > 2000 mm in zinc primer.
