Description
Heavy-Duty Lift with 9T Lift Capacity

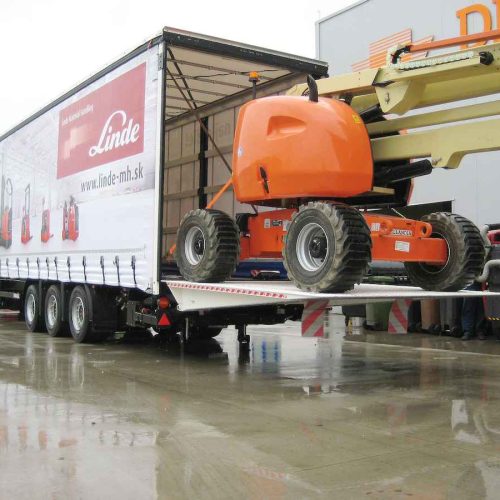

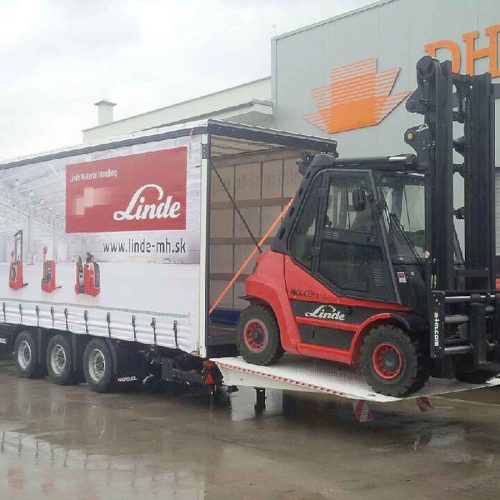

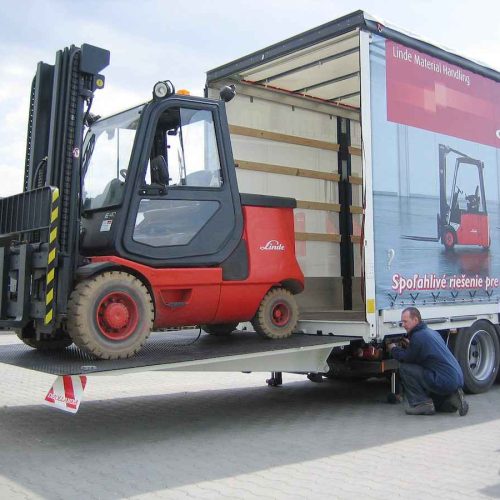

The heavy-duty lift GE-LSU.90 is designed for extreme lift capacities┬аfrom 7500 to 9000 kg┬аand is mainly used for the transport of heavy machinery, forklifts, agricultural tractors, etc

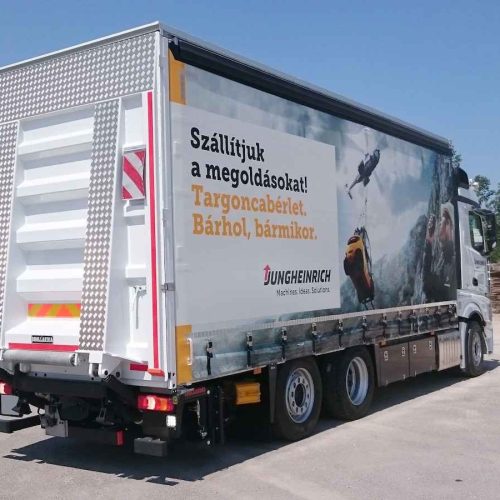

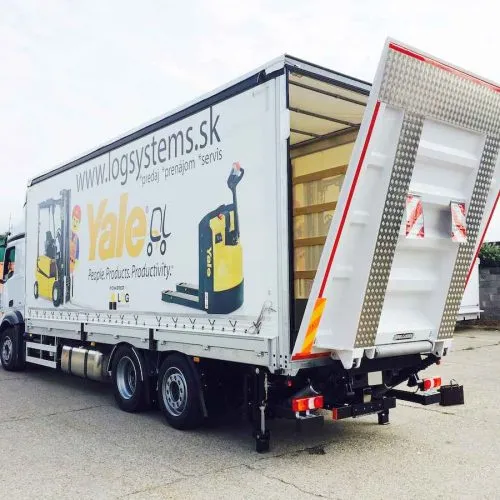

The steel platform can be extended to form the rear closure of the vehicle body and can be modified so that it can be inclined in the ramp position [option OAH027].
Hydraulic stabilizing legs are standard on the GE-LSU.90. It is important to have the chassis sufficiently reinforced for the mounting of this type of tail lift.
- The absolute top: tail lift designed for extreme lift capacities of 7500-9000 kg
- Suitable for the transport of heavy machinery, agricultural tractors, forklifts, etc…
- Equipped with hydraulic stabilizing legs in standard execution

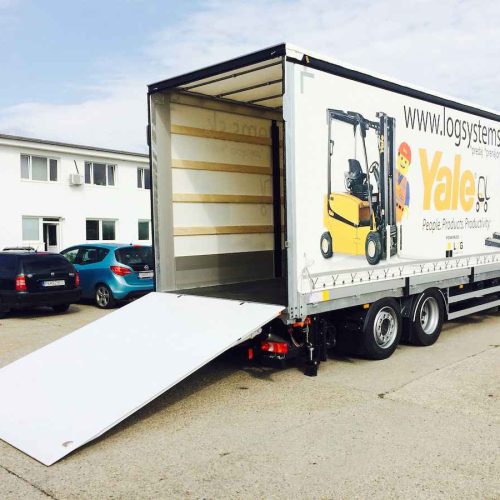

- Optional use of the platform in ramp position [option OAH027]
- Lift frame in Protection PLUS finish (zinc phosphate + KTL epoxy primer + polyester powder top coat)
Characteristics:
PLATFORM
- Reinforced heavy-duty steel platform, adapted to extreme lift capacities
- Steel feet for the contact between the platform and the ground
FUNCTIONAL & MECHANICAL CHARACTERISTICS
- Reinforced heavy-duty lift frame, suitable for extreme lift capacities
- Conical / wedge platform. Level ride with automatic tilt at ground level
- Platform tilt adjustable at any position from the exterior controls
HYDRAULICAL CHARACTERISTICS
- 2 lift cylinders for maximum platform stability
- 2 double acting tilt cylinders (open-with-motor) [OAH026]
- Electrical safety valves on all cylinders
- Manual emergency operation on all electro valves
- Cylinder piston rods in hard-chromed stainless steel
- Cylinders equipped with rubber gaitors and lubrication
- 2 hydraulic stabilising legs with robust support construction [OAH010]
- Powerful 24V DC pump unit, mostly premounted in the middle of the lift frame
ELECTRICAL CHARACTERISTICS
- Control box┬аwith battery disconnect switch, joystick control and change-over switch [OAE030.BT.0]
- Electrical controls without sensitive electronic components in basic configuration
- Safe exterior controls with compulsory 2-hand operation
- Electric motor with thermal cut-out fuse
FITTING
- Weld-on mounting plates, to be reinforced during installation
- Chassis work and fitting details are to be discussed and coordinated prior to placing the order
- Chassis and subframe requirements are to be validated with the vehicle manufacturer
FINISH & MAINTENANCE
- Low-maintenance bearings in all articulation points, plus grease nipples
- Lift frame in Protection PLUS finish (zinc phosphate + KTL epoxy primer + polyester powder top coat)
- Steel platforms to 2000 mm shotblasted and KTL epoxy primed, or in zinc primer at the discretion of our company. Steel platforms > 2000 mm in zinc primer.
