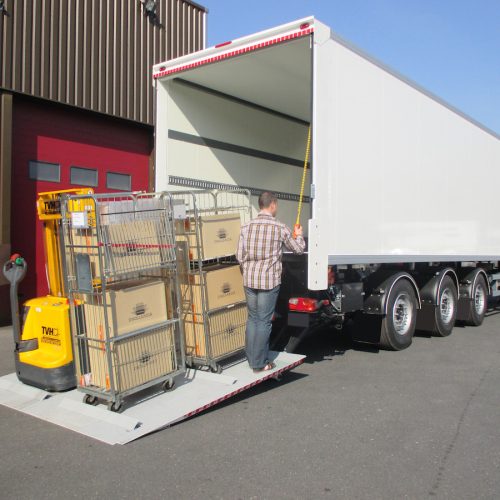

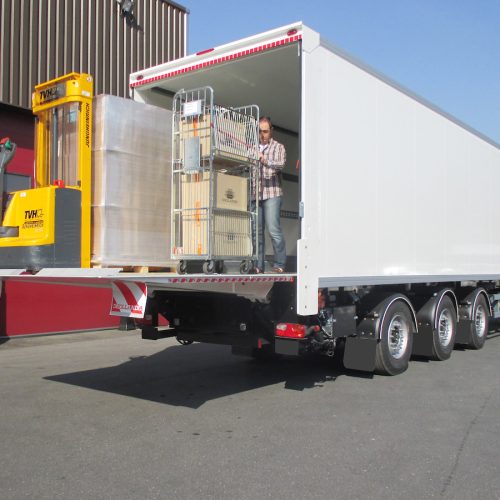

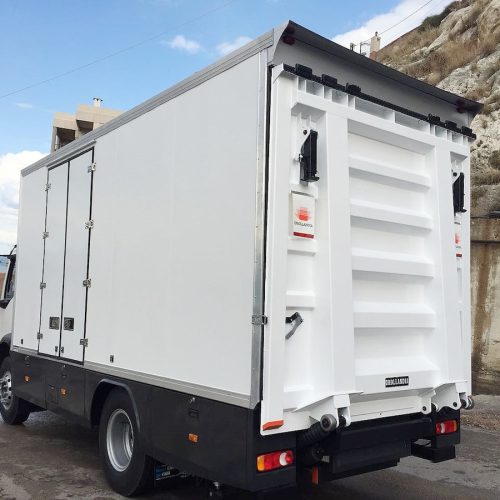

GE-LSU.60: Heavy Duty Lift up to 6T
The heavy-duty lift GE-LSU.60 is designed for┬аextreme lift capacities┬аfrom 4000 to 6000 kg, and is mainly used for the transport of heavy machinery, forklifts, agricultural tractors, etc тАж
The tilt cylinders can be modified so that the platform can be┬аtilted down in the ramp position┬а[option OAH027]. When equipped with the┬аrace car kit and reinforced foldable ramps [option OAU007тАж], the GE-LSU.60 4000 kg is ideally suited to load and unload cars up to 3000 kg of proper weight.
Hydraulic stabilizing legs are standard on the GE-LSU.60. It is important to have the chassis sufficiently reinforced for the mounting of this type of tail lift.
- Beyond competition: tail lift designed for extreme lift capacities of 4000-6000 kg

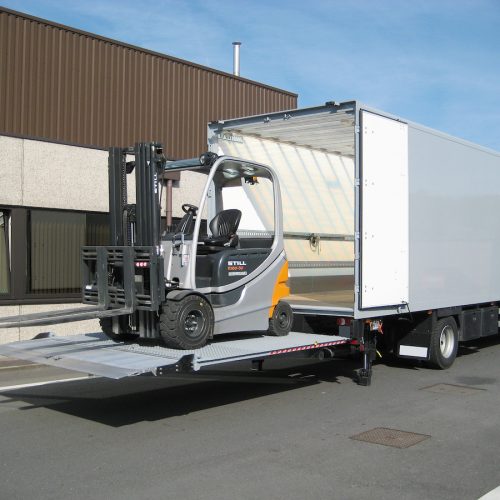

- Suitable for the transport of heavy machinery, agricultural tractors, forklifts, etc…
- Equipped with hydraulic stabilizing legs in standard execution
- Optional use of the platform in ramp position [option OAH027]
- Lift frame in Protection PLUS finish (zinc phosphate + KTL epoxy primer + polyester powder top coat)
Characteristics:
PLATFORM
- Reinforced heavy-duty steel platform, adapted to extreme lift capacities
- Steel rollers for the contact between the platform and the ground
FUNCTIONAL & MECHANICAL CHARACTERISTICS
- Reinforced heavy-duty lift frame, suitable for extreme lift capacities
- Conical / wedge platform. Level ride with an automatic tilt at ground level
- Platform tilt adjustable at any position from the exterior controls
HYDRAULIC CHARACTERISTICS
- 2 lift cylinders for maximum platform stability
- 2 tilt cylinders with spring-assisted platform opening
- Electrical safety valves on all cylinders
- Manual emergency operation on all electro valves
- Cylinder piston rods in hard-chromed stainless steel
- Cylinders equipped with rubber gaitors and lubrication

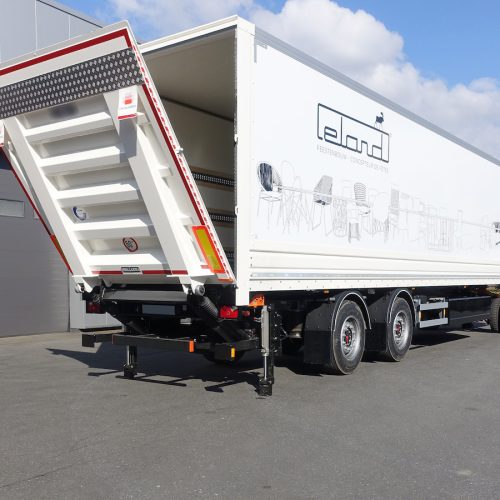

- 2 hydraulic stabilising legs with robust support construction [OAH010]
- Powerful 24V DC pump unit, mostly premounted in the middle of the lift frame
ELECTRICAL CHARACTERISTICS
- Control box with battery disconnect switch, joystick control, and change-over switch [OAE030.BT.0]
- Electrical controls without sensitive electronic components in basic configuration
- Safe exterior controls with compulsory 2-hand operation
- Electric motor with thermal cut-out fuse
FITTING
- Weld-on mounting plates, to be reinforced during installation
- Chassis work and fitting details are to be discussed and coordinated prior to placing the order
- Chassis and subframe requirements are to be validated with the vehicle manufacturer
FINISH & MAINTENANCE
- Low-maintenance bearings in all articulation points, plus grease nipples
- Lift frame in Protection PLUS finish (zinc phosphate + KTL epoxy primer + polyester powder top coat)
- Steel platforms to 2000 mm shot blasted and KTL epoxy primed, or in zinc primer at the discretion of Gilani Engineering. Steel platforms > 2000 mm in zinc primer.
