Description
Foldable Cargo Platform┬аoffering free access to the cargo space

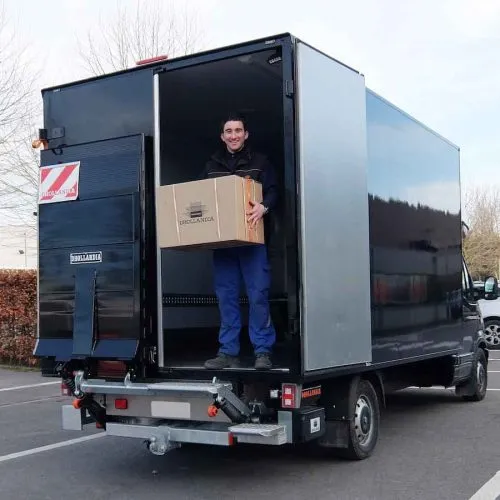

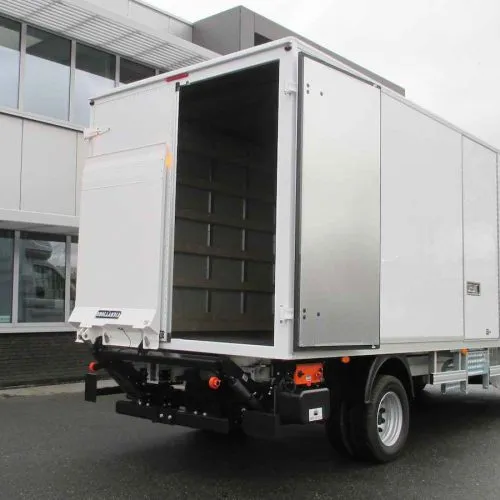

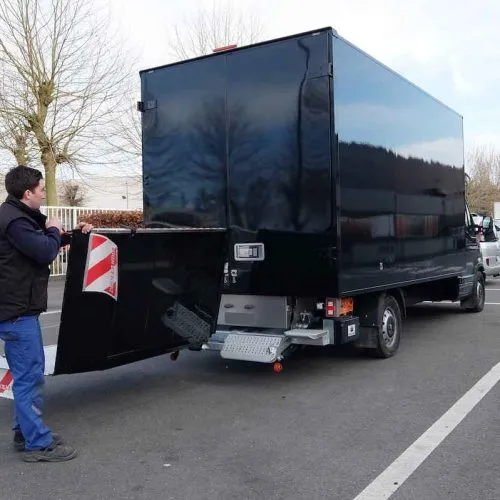

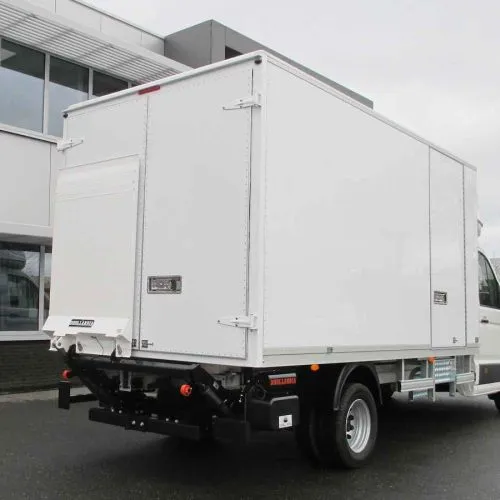

The GE-LEZ.10 is specially designed for vertically folding platforms [option OAP406] and offers maximum flexibility to the operator. When the platform stands in its travel position, one door remains free and the driver has free access to the cargo space inside the body.

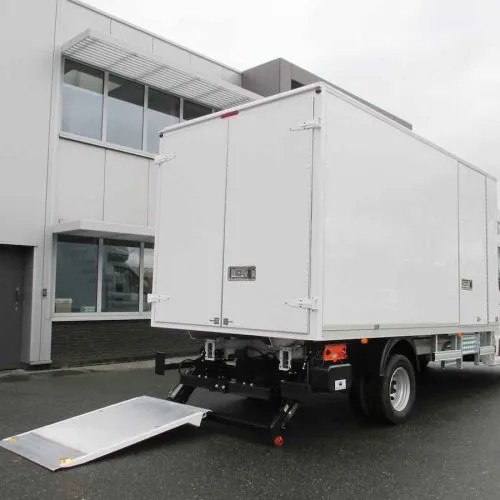

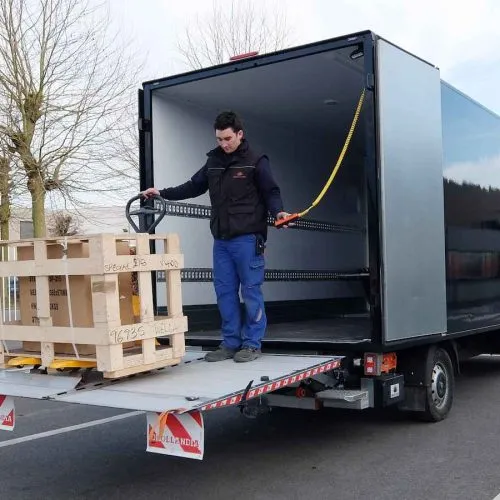

When large and heavy cargo must be handled, the platform can be opened into a horizontal work position and unfolded to a full-width platform in a matter of seconds.
Thanks to the wide arm center, the GE-LEZ.10 offers superior platform stability. It is suitable for light and medium-duty trucks up to 7.5T GVW and is available with standard bolt-on mounting plates, or quick-fit mounting plates adapted to the most popular brands and types of van chassis.
- Maximum flexibility:
- Free access through the free door for small, light parcels/objects
- Full-fledged tail lift for pallets / heavy objects or machinery
- 2 hydraulic lift cylinders and a wide arm guarantee maximum platform stability
- Conical/wedge platform. Level ride with an automatic tilt at ground level
- Lift frame in Protection PLUS finish (zinc phosphate + KTL epoxy primer + polyester powder top coat)
Characteristics
PLATFORM
- Half-width platform, or foldable platform [option OAP406] made of lightweight aluminium profiles
- Synthetic rollers for the contact between the platform and the ground
FUNCTIONAL & MECHANICAL CHARACTERISTICS
- Wide lift arm for integral support of the platform
- Conical/wedge platform. Level ride with an automatic tilt at ground level
- Platform tilt adjustable at any position from the exterior controls
HYDRAULIC CHARACTERISTICS
- 2 lift cylinders for maximum platform stability
- 1 tilt cylinder with spring-assisted platform opening
- Electrical safety valves on all cylinders
- Manual emergency operation on all electro valves
- Cylinder piston rods in hard-chromed stainless steel
- Cylinders equipped with rubber gaiters and lubrication
- Pump unit 12V or 24V DC, accessible on 5 sides for easy maintenance
ELECTRICAL CHARACTERISTICS
- Control box with battery disconnect switch, joystick control, and change-over switch integrated in the cover of the pump unit [OAE030.BT.P.0]
- Without battery disconnect switch: dual toggle-switch control box supplied loose [OAE048.0]
- Electrical controls without sensitive electronic components in basic configuration
- Safe exterior controls with compulsory 2-hand operation
- Electric motor with thermal cut-out fuse
FITTING
- Bolt-on mounting plates for quick and easy fitting [OAM010]
- Also available with quick-fit mounting plates adapted to the vehicle brand, the wheelbase, and overhang [option OAM014]
- Fixed 3-piece bumper bar available as an option [OAF100.ST]
FINISH & MAINTENANCE
- Low-maintenance bearings in all articulation points, plus grease nipples
- Lift frame in hot-dip zinc plated or “galvanized” finish. Best possible protection against corrosion [OAT104].
- Alu platform or platform sections in natural finish
