Lightest 4-Cylinder Tail Lift for the last-mile distribution transport

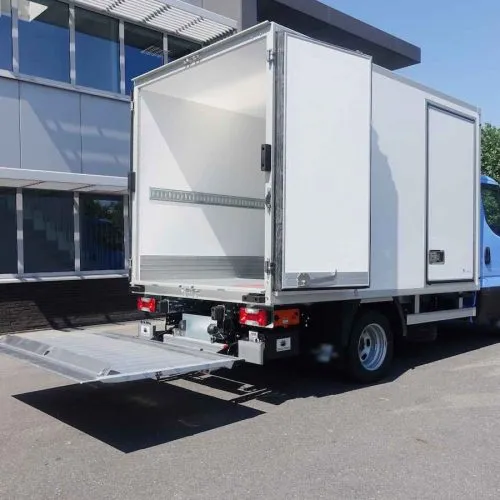

The GE-LMA.08 is the lightest 4-cylinder cantilever lift available on the market. Thanks to its benchmark weight, its superior stability, and its wide choice of value-adding options, this tail lift fulfills all the requirements of a modern, efficient, and environmentally friendly urban distribution vehicle.
The GE-LMA.08 offers approx. 30 kg weight advantage in comparison to the current GE-LMA.10, and is available with lift capacities of 500-750 kg.
It is suitable for all van chassis up to the max. 1120 mm floor height, and is supplied with quick-fit mounting plates, adapted to all popular brands and types of chassis. Unlike the GE-LE.08 and some competing 3-cylinder lifts offered on the market, the GE-LMA.08 can be equipped with towing hitch construction.
- A best-seller in the light-duty range: superior stability and performance.
- 2 lift and 2 tilt cylinders for maximum platform stability
- Execution and mounting plate adapted to the vehicle brand and type of chassis, to guarantee the fastest possible fitting times and best possible weight reduction.
- Standard finish in Protection PLUS (KTL + powder coat). Hot-dip zinc-plated finish is available as an option.
- Available with towing hitch construction
- A very versatile lift is available with a large choice of value-adding options and extra equipment.
Characteristics:
- Extremely light aluminium platform with a non-slip surface
- Aluminium platform with profiles oriented in a longitudinal direction [type V…], and a cross-milled anti-slip protection pattern
- Synthetic rollers for the contact between the platform and the ground
- Lift frame and mounting plates with advanced weight optimization
- Conical / wedge platform. Level ride with an automatic tilt at ground level
- Platform tilt adjustable at any position from the exterior controls
- 2 lift cylinders for maximum platform stability
- 2 tilt cylinders with spring-assisted platform opening
- Electrical safety valves on all cylinders
- Manual emergency operation on all electro valves
- Cylinder piston rods in hard-chromed stainless steel
- Cylinders equipped with rubber gaiters and lubrication
- Pump unit 12V or 24V DC, accessible on 5 sides for easy maintenance
- Control box with battery disconnect switch, joystick control, and change-over switch integrated into the cover of the pump unit [OAE030.BT.P.0]
- Electrical controls without sensitive electronic components in basic configuration
- Safe exterior controls with compulsory 2-hand operation
- Electric motor with thermal cut-out fuse
- Bolt-on mounting plates for quick and easy fitting [OAM010]
- Also available with quick-fit mounting plates adapted to the vehicle brand, the wheelbase and overhang [option OAM014]
- Light-weight 3-piece bumper in aluminium available as an option [OAF100.AL]
- Low-maintenance bearings in all articulation points, plus grease nipples
- Lift frame in Protection PLUS finish (zinc phosphate + KTL epoxy primer + polyester powder top coat)
- Alu platform or platform sections in natural finish
