Compact Cantilever Lift with Reduced Overhang: Ideal for Short Overhang Trucks & Trailers

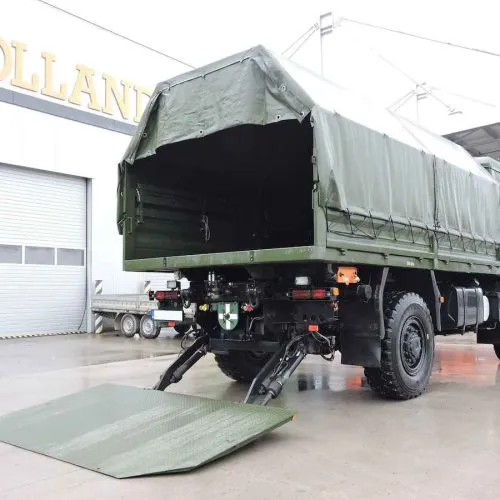

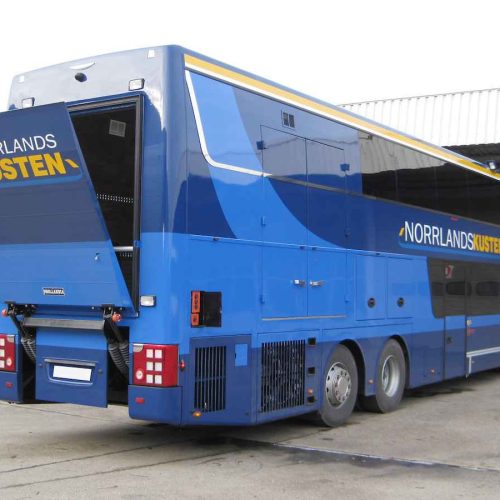

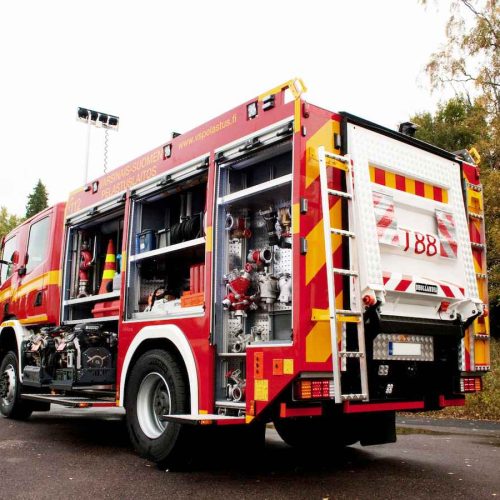

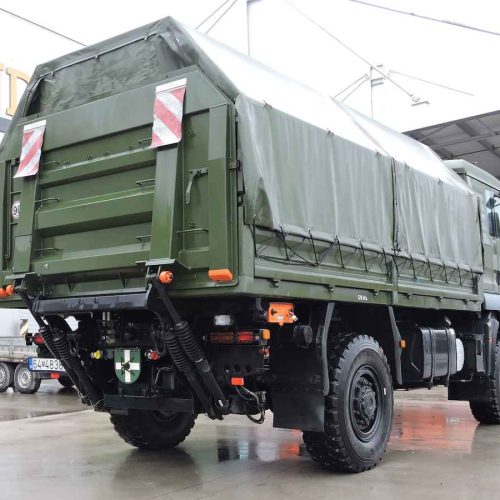

The GE-LMP.20 is equipped with a compact lift frame, that requires 100 mm less overhang than the standard model GE-LM.20. It is specially adapted to suit trucks, trailers and semi-trailers with a very short overhang┬аbehind the rear axle or the spring hangars on the vehicle chassis (e.g. military trucks, city-trailers with rear steering axle,…).
The GE-LMP.20 is the most popular execution. But similar compact LMP executions exist for other lift capacities: GE-LMP.10 for 750-1000 kg, GE-LMP.15 for 1000-1500 kg, and GE-LMP.25 for 2000-2500 kg capacity.
- Compact lift frame voor mounting in a very short overhang
- Lift frame without cross tube available (for mounting on bodies with scissor lift)
- Wedged platform. Level ride with an automatic tilt at ground level. Adjustable platform orientation.
- Lift frame in Protection PLUS finish (zinc phosphate + KTL epoxy primer + polyester powder top coat)
Characteristics:
PLATFORM
- Light-weight aluminium┬аplatform, or┬аheavy-duty steel┬аplatform
- Aluminium platform with profiles oriented in a longitudinal direction [type V…], and a cross-milled anti-slip protection pattern
- Synthetic rollers for the contact between the platform and the ground
- Maximum platform depth: 2250 mm (see technical characteristics for detail. Longer platforms possible on GE-LM.30)
FUNCTIONAL & MECHANICAL CHARACTERISTICS
- Conical / wedge platform. Level ride with an automatic tilt at ground level
- Platform tilt adjustable at any position from the exterior controls
- Compact lift frame voor mounting in a very short overhang
HYDRAULICAL CHARACTERISTICS
- 2 lift cylinders for maximum platform stability
- 2 tilt cylinders with spring-assisted platform opening
- Electrical safety valves on all cylinders
- Manual emergency operation on all electro valves
- Cylinder piston rods in hard-chromed stainless steel
- Cylinders equipped with rubber gaiters and lubrication
- Pump unit 12V or 24V DC, accessible on 5 sides for easy maintenance
ELECTRICAL CHARACTERISTICS
- Control box with battery disconnect switch, joystick control, and change-over switch [OAE030.BT.0]
- Electrical controls without sensitive electronic components in basic configuration
- Safe exterior controls with compulsory 2-hand operation
- Electric motor with thermal cut-out fuse
FITTING
- Bolt-on mounting plates for quick and easy fitting [OAM010]
- Fixed 3-piece bumper bar available as an option [OAF100.ST]
FINISH & MAINTENANCE
- Low-maintenance bearings in all articulation points, plus grease nipples
- Lift frame in Protection PLUS finish (zinc phosphate + KTL epoxy primer + polyester powder top coat)
- Alu platform or platform sections in natural finish
- Steel platforms to 2000 mm shotblasted and KTL epoxy primed, or in zinc primer at the discretion of Gilani Engineering. Steel platforms > 2000 mm in zinc primer.
